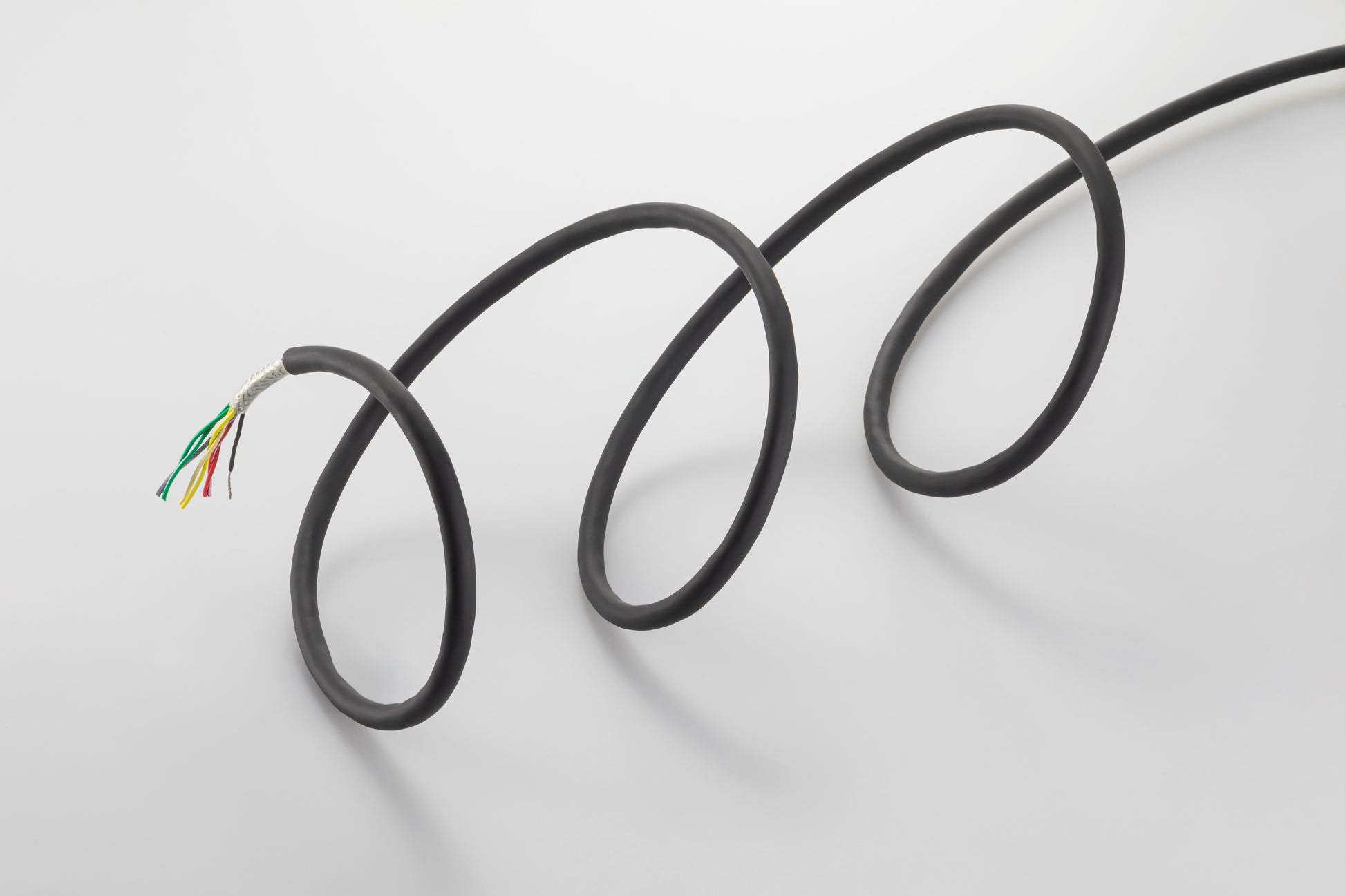

MSF-2464 Series
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Make to order should be confirmed with us.
*Pairs and Conductor size should be confirmed with us.
UL Style 2464 C-UL AWM Ⅰ/Ⅱ A/B CM CL3
Applications
⚫ Used as signal cables for electronic devices, cables for power control circuits, and signal cables for machine tools.
⚫ These products are suitable for wiring (shield type) in environments where oil resistance is required and locations where noise resistance is required.
Features
⚫ Listing standard: This products are multi-type cables that have been
certified under CM and CL3 standards.
⚫ These products have an attractive appearance and excellent oil resistance.
⚫ The space-saving design makes them ideal for wiring in narrow spaces.
⚫ The braided shield provides high noise removal performance to combat the effects of radiated noise and external noise, as well as excellent flexibility.
⚫ Drain wire is inserted to tin-plated braid for easier grounding process.（Drain wire type）
Structural diagram
Surface marking
E513907-M (UL) CL3 ▢▢AWG 105℃ or c(UL)us CM ▢▢AWG 105℃ or AWM 2464 VW-1 or AWM Ⅰ/Ⅱ A/B ▢▢AWG 80℃ 300V FT1 ONAMBA
*▢▢: Indicates the AWG size.
Insulator standard colors
[Layer strand type]
Black, white, red, green, yellow, brown, blue, gray, orange, and light blue
[Pair strand type]
Black + Black/white, red + red/white, green + green/white, yellow + yellow/ white, brown + brown/white, blue + blue/white, gray + gray/white,
orange + orange/white, purple + purple/white, light green + light green/white
Sheath standard colors : Black
Precautions for use
Do not use these products in cable carriers, robot arms, and other environments where sliding performance and continuous bending performance are required.
RoHS2 compliant means that the products contain none of the 10 restricted substances.
Ratings
Layer strand type structure diagram
Pair strand type sequence diagram
Structural table: Layer strand type (for fixed wiring)
* RoHS2 compliant means that the products contain none of the 10 restricted substances.
*In-stock items and made-to-order items are subject to change without notice.
Structural table: Pair strand type (for fixed wiring)
* RoHS2 compliant means that the products contain none of the 10 restricted substances.
Cables for electronic device wiring
Structural table: Layer strand type (for fixed wiring)
*RoHS2 compliant means that the products contain none of the 10 restricted substances.
-
