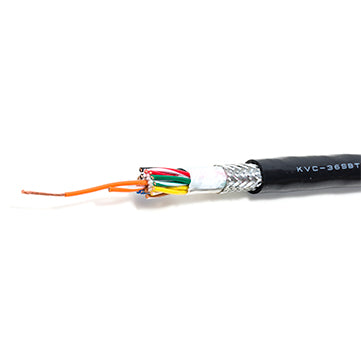

KVC-36SBT UL AWM 2936/2576 (1coil/100m≒328ft)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.



1. Scope

KVC-36SBT is fixed cable with braided shield which has heat resistant polyvinyl chloride insulation and oil and heat resistant polyvinyl chloride sheath, which applies to UL758(AWM), CSA c22.2.No.210(AWM) and intended for use in accordance with the Canadian Electrical Code in Canada and NFPA79 in United States.


2.Type and size

Type and size are indicated in Table 1

KVC-36SBT _Table
3.Adaptation standards

Adaptation standard are indicated in Table 2

KVC-36SBT _Table
4.Materials and Constructions


4.1 Conductors
The conductors of 0.5mm2 shall be a stranded wire composed of annealed copper wires specified in JIS C 3102 and ASTM B3.

4.2 Insulation
The conductor described in 4.1 shall be covered with heat resistant polyvinyl chloride of the nominal thickness indicated in table 4 in the shape of a concentric circle.

4.3 Identification of insulated wire
The identification of insulated wires shall be made by the insulation colors and straight line indicated in table 3.
KVC-36SBT _Table
4.4 Twisted pair
The insulated wires of 0.5mm2 indicated in table 3 shall be twisted. The direction of lay of twists is right-hand.

4.5 Assembly
The insulated wires or twisted pairs shall be arranged such as indicated in figure 1 and assembled, if necessary with fillers, and rolled up with tape on the assembly.

4.6 Shield
The assembly described in 4.5 shall be braided uniformly tin coated annealed copper wires specified in JIS C 3152, and the drain wire shall be inserted between the assembly and the shield.

4.7 Sheath
The assembly described in 4.6 shall be covered with oil and heat resistant polyvinyl chloride, the color is black, of the nominal thickness indicated in table 4 in the shape of a concentric circle.


5. Flame resistance

Flame resistance is indicated in table 5.

KVC-36SBT _Table

KVC-36SBT _Table

KVC-36SBT _Table

KVC-36SBT_Figure

KVC-36SBT_Figure
