ORP slim cable series
For Quotation, please click the Contact Us button below.
(1coil/100m≒328ft) Basically 100m MOQ,
Cutting under 100m or Make to order should be confirmed with us.
*Cores ＆ Pairs and Conductor size should be confirmed with us.

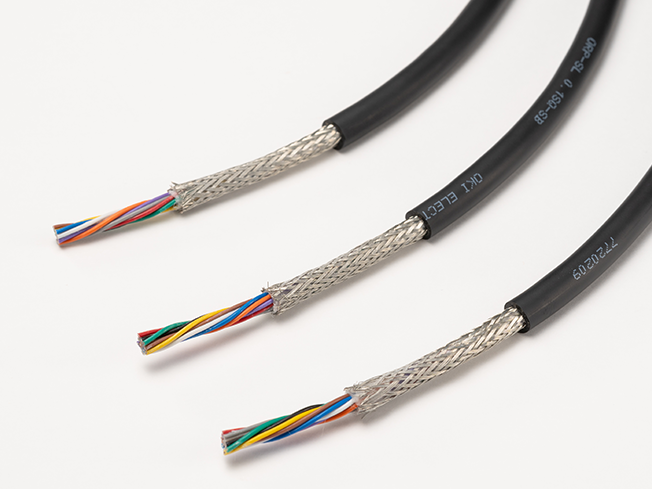

ORP slim cable series
UL 758 Style 2464 80˚C 300 V
Highly reliable robot cables, easy to handle, capable of following robot’s complex movements with outstanding durability.
Features
● Industry-leading slimness !
Optimal for wiring in a narrow interior space of devices.
Will contribute to weight reduction of devices.
(About 20% slimmer and lighter as compared to our existing ORP cables.)
● Sliding durability of over 100 million times
Outstanding durability while following any movements (sliding, swinging and twisting).
● Extensive line-up
Conductor size: 0.05 - 0.5 mm2
Number of cores: 3 - 15 (Multi core type)
Number of pairs: 1 - 20 (Twisted pair type)
Specifications
Material and Structure
| Conductor | Tin-plated soft copper stranded wire |
| Insulator | Special elastomer |
| Insulator identification | Depends on core wire identification (combination) and configuration of core wires (pairs). |
| Shielding | Tin-plated soft copper wire braiding |
| Jacket material （jacket color) | Oil-proof PVC (black matte) |
Usage environment
| Application | Indoors; fixed and moving parts between and within devices |
| Operating temperature range | -10 to 80 ℃ |
Applicable standards
UL758 Style 2464 (Rating: 80°C, 300 V)
Build-to-order manufacturing of UL listing (CL 3) standard-compliant products is available.
Jacket Marking
□: Conductor cross-section area (m㎡ ) 0.05/0.1/0.2/0.3/0.5 △△ : Shield code (unshielded: blank; shielded: -SB) ####: Lot No.
Performance
Electrical performance
Movement performance
Line-up
Twisted pair type
-
Manufacturer:OKI
