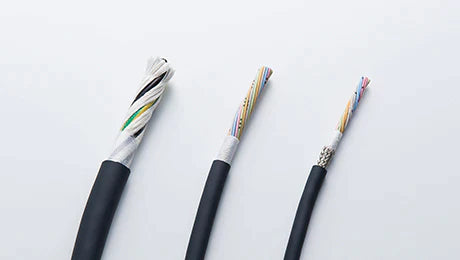

EXT-2/20276 LF(20AWG~24AWG)

Available
Login to View Price

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.



Application

  • Appropriate for cable chain wiring for high-speed moving.
  • Cable Bear test 50 million times or more. (or more ability 100 million times)
  • Robot cable with UL and cUL at 30V,80°C. (Category : AVLV2, AVLV8)

Feature

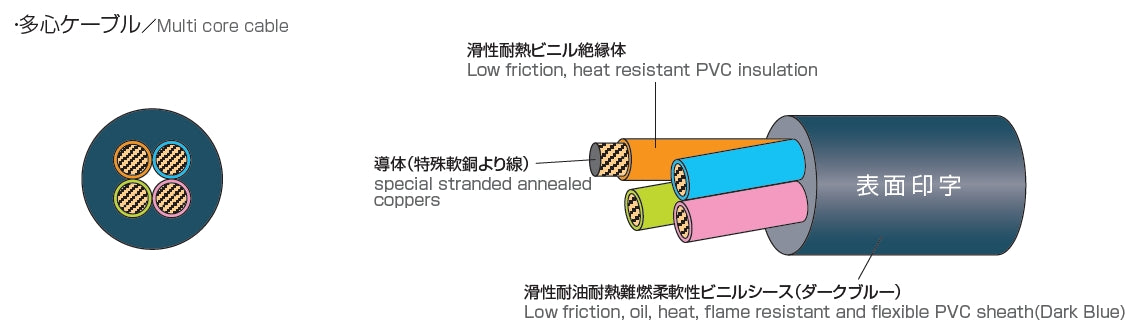

  • Extremely fine special conductor use.
  • Low friction and heat resistant PVC used for insulation.
  • Oil and heat resistant PVC used for sheath.
  • Low friction material used for sheath.
  • Flame resisting : UL VW-1, cUL FT1.








  • Certification:
    EXT-2/20276 LF(20AWG~24AWG)
  • Category:
    Global Cables,Robot Cables
  • Manufacturer:
    TAIYO
  • Insulator:
    Heat resistant PVC
  • Cable Carrier Resistant
  • Flame Retardant
  • Flexible Robot Cable
  • Heat Resistant
  • Oil Resistant
  • Shielded
  • Torsion Resistant
Nominal cross sectional area
Number of conductors
Product Description

For Quotation, please click the Contact Us button below.

(1coil/100m≒328ft) Basically 100m MOQ,

Cutting under 100m or Made to order should be confirm with us.



Application

  • Appropriate for cable chain wiring for high-speed moving.
  • Cable Bear test 50 million times or more. (or more ability 100 million times)
  • Robot cable with UL and cUL at 30V,80°C. (Category : AVLV2, AVLV8)

Feature

  • Extremely fine special conductor use.
  • Low friction and heat resistant PVC used for insulation.
  • Oil and heat resistant PVC used for sheath.
  • Low friction material used for sheath.
  • Flame resisting : UL VW-1, cUL FT1.
